Steel Panel Profile

Reaction Co. has partnered with ATAD...

ATAD Steel Structure Corporation
has always been recognized as the pioneer in new technology investment to produce the highest-quality products. With 211,000 m2 manufacturing plant, ATAD can reach the capacity of 12,000 tons steel structure and 360,000 m2 steel panel each month.



ATAD constantly conducts research and improves many product line of steel panels to have advantage features and suit various requirements as well as particular details of each project such as:




ATAD Seam65 Steel Panel


I. FEATURES



a. ATAD Seam65 is one of the most durable and the most dispersing drainage roof systems available in the industry today.


b. The raised seam is designed with the rib height of 65 mm, it seems to be as a water trough that assists well drainage, excludes completely condensed water. Ensure to use safely in case of the roof with a little as three percent in comparison with the horizontal level.


c. The fixing clip of ATAD Seam65 is designed to allow the roof to expand and contract with temperature changes, eliminate damaging effects of thermal movement.



II. APPLICATIONS

ATAD Seam65 is used for roof panel in the industrial building system, not use for wall claddings. This is the most effective against leak-water and overflowing water.


Thus, this is an excellent choice for rainy and high wind-speed areas. ATAD Seam65 is one of the best roofing systems with its best resistance characteristic.

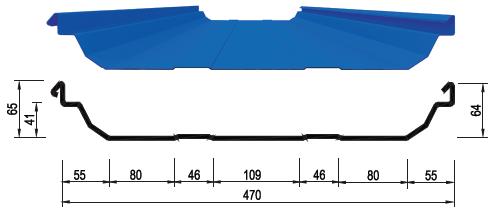

ATAD Seam65 Steel Panel

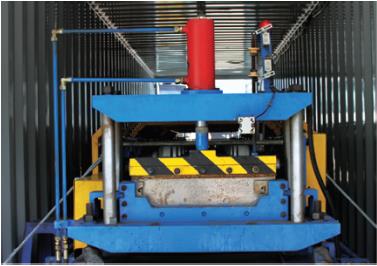

ATAD Seam65 Forming Machine




ATAD Seam116 Steel Panel


I. FEATURES



a. ATAD Seam116 is one of the strongest and the most dispersing drainage roof systems available in the industry today.


b. The raised seam is designed with the rib height of 116 mm, it seems to be as a water trough that assists well drainage, excludes completely condensed water.


Ensure to use safely in case of the roof with a little as one percent in comparison with the horizontal level.


c. The fixing clip of ATAD Seam116 is designed to permit the roof to expand and contract with temperature changes, eliminate damaging effects of thermal movement.



II. APPLICATIONS

ATAD Seam116 is used for roof panel in the industrial building system, not use for wall claddings. This is the most effective at leak-water and overflowing water.


Thus, this is an excellent choice for rainy and high wind-speed areas. ATAD Seam116 is one of the best roofing systems with its best resistance characteristic.

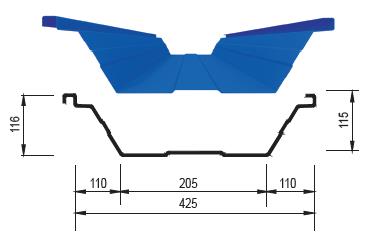

ATAD Seam116 Steel Panel

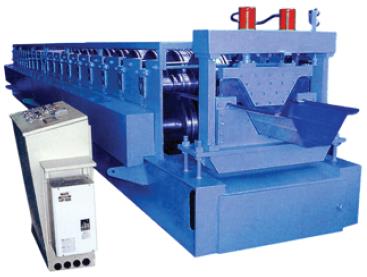

ATAD Seam116 Machine



ATAD Lock420 Steel Panel


I. FEATURES



a. Water-leak and environmental corrosion along the line of screw thread are regular occurring problems of traditional roof systems. Therefore, ATAD Lock420 provides a better solution to avoid these disadvantages.


b. ATAD Lock420 is a high-strength sheeting. It is designed to deliver longer durability, wider span and better wind resistance than other traditional sheetings that connected directly to purlin by using screws.


c. ATAD Lock420 is fastened to purlin by using fixed clips which are placed along the purlin.



II. APPLICATIONS

ATAD Lock420 is suitable to use for roof cladding. With rib height of 41mm, it assures rainwater dispersion in case of roof system with slope low as 7 percent and brings great peace of mind to users.


In addition, ATAD Lock420 is also applicable to wall cladding for better aesthetics in many civil architectural buildings and industrial buildings.

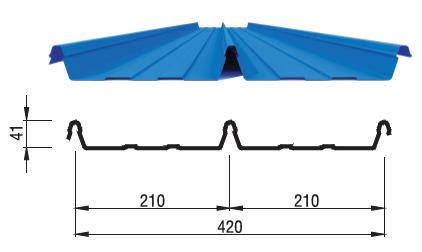

ATAD Lock420 Steel Panel

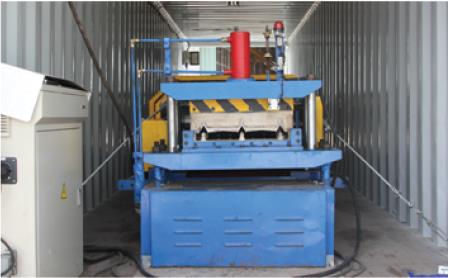

ATAD Lock420 Machine




ATAD Lock940 Steel Panel


I. FEATURES



a. Water-leak and environmental corrosion along the line of screw thread are regular occurring problems of traditional roof systems.

Therefore, ATAD Lock940 provides a better solution to avoid these disadvantages.


b. ATAD Lock940 is a high-strength sheeting. It is designed to deliver longer durability, wider span and better wind resistance than other traditional sheetings that connected directly to purlin by using screws.


c. ATAD Lock940 is fastened to purlin by using fixed clips which are placed along the purlin.



II. APPLICATIONS

ATAD Lock940 is suitable to use for roof cladding. With rib height of 41mm, it assures rainwater dispersion in case of roof system with slope low as 7 percent, and brings great peace of mind to users.

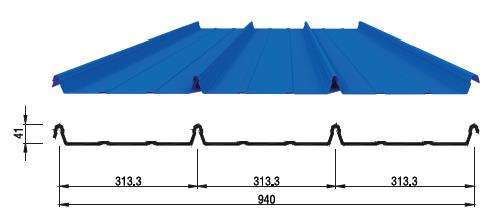

ATAD Lock940 Steel Panel

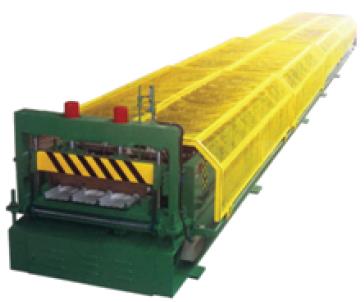

ATAD Lock940 Machine




ATAD Span5 Steel Panel


I. FEATURES

ATAD Span5 designed with five ribs brings strength, durability, and flexible length according to customer requirements.


The product is designed using screws for tying up the panel to purlin.


ATAD Span5 with the male-rib height of 32 mm, wide ribs distance ensures quick drainage, and it is suitable for pre-engineered buildings with the big scope and low slopes.



II. APPLICATIONS

This is one of the kinds of traditional and most common panels. It is often used as roof panel, wall panel and in buildings with the curved panel.

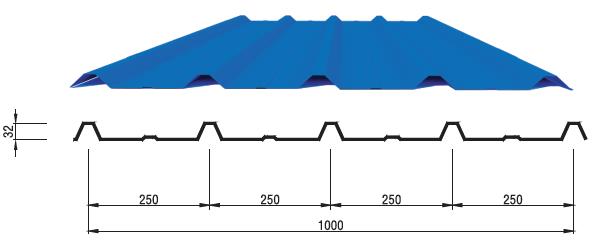

ATAD Span5 Steel Panel

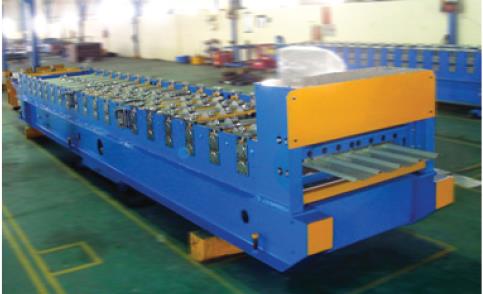

ATAD Span5 Forming Machine




ATAD Span6 Steel Panel


ATAD Span6 designed with six ribs brings strength, durability, and flexible length according to customer requirements.


The product is designed using screws for tying up the panel to purlin.


ATAD Span6 panels are used flexibly as roof panel, wall panel, interior partitions, fascias or parapets.


With high ribs and narrow rib-spacing, creates architectural aesthetics for civil and industrial buildings.

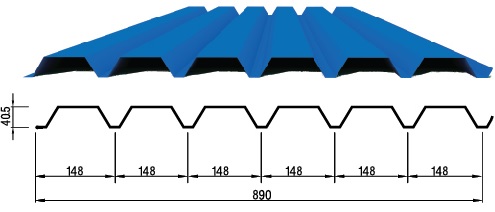

ATAD Span6 Steel Panel

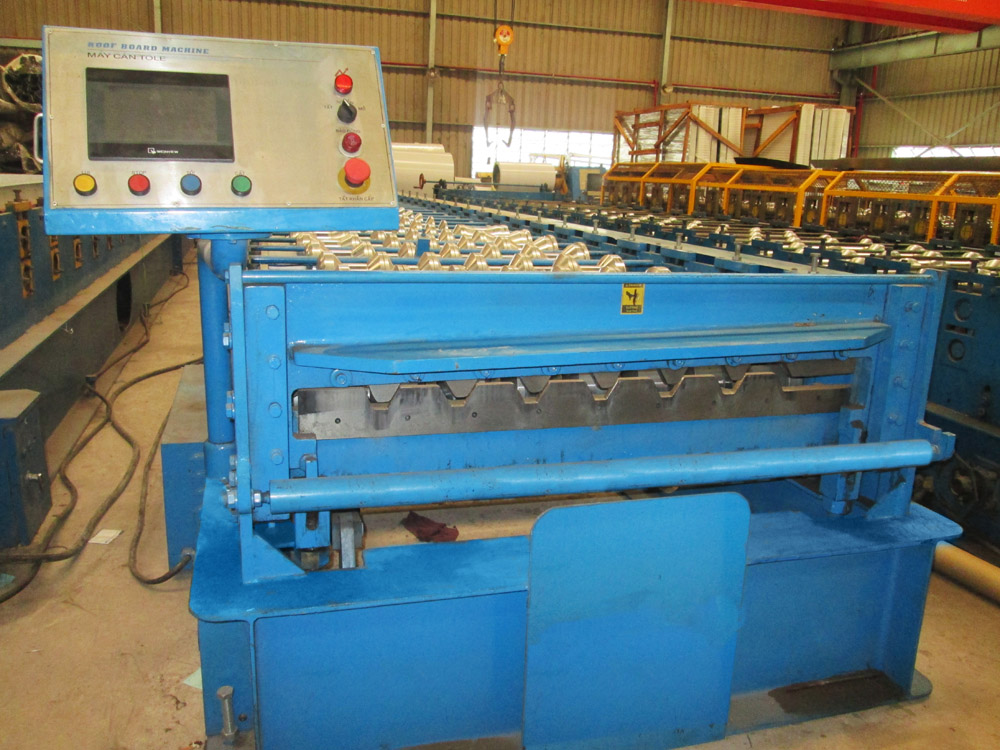

ATAD Span6 Forming Machine




ATAD Span9 Steel Panel


I. DESCRIPTION

ATAD Span9 is being used for wall panels instead of the common Span5. The feature of ATAD Span9 with low ribs and narrow rib-spacing creates architectural aesthetics for civil buildings and industrial buildings.



II. APPLICATIONS

With an architectural aesthetic appearance, ATAD Span9 is used flexibly as ceiling sheets, interior partitions, fascia or parapets.


ATAD Span9 is rarely used for roof sheeting in industrial buildings due to its low height of ribs and narrow rib-spacing, and because its drainage ability is not as good as other sheetings.

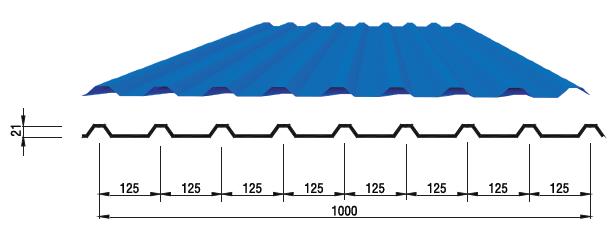

ATAD Span9 Steel Panel

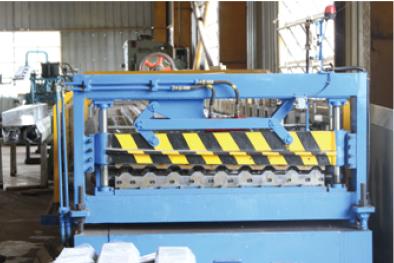

ATAD Span9 Forming Machine




ATAD Deck Steel Panel


ATAD Deck is used as formworks for civil buildings and industrial buildings. There are a lot of transversal burrs distributed equidistantly along the longitudinal panel, the former increase the hardness of decking panel.

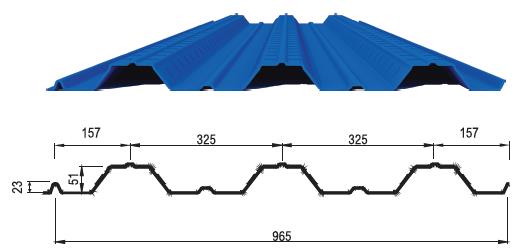

ATAD Deck Steel Panel
